Registered
The Northstar Tuner
Joined
·
2,759 Posts
Discussion Starter #1
Devilles have three types from 00 to 03

The first is a single AIR pump

They have 1 relay and it has a large Valve on the rear Valve cover
.
.
The Next system has two AIR Pumps. A left and a right.

This can be Identified by 2 relays
.
.
The Third has no AIR PUMP

.
.
.
.
Sevilles have the same Three types.

The first has a Single relay and the same large valve

.
.
The next has Two relays and the large valve.



.
.
The next has NO AIR PUMP
I have no pictures.
.
.
.
.
The next and last are the Eldo's
You can not see the relays, but the valve is on the rear valve cover. They only have a Single AIR PUMP.
.
.

With AIR
.
.
.

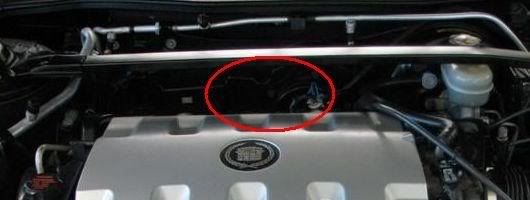

Without AIR

  • Like
Reactions: TSS

·
Registered
The Northstar Tuner
Joined
·
2,759 Posts
Discussion Starter #3
If you have a twin AIR pump you will need to install the supplied jumper harness.

Pin 75 of the blue connector


Pin 54 of the clear connector




I will post more on this subject


·
Cadillac Technician
none
Joined
·
11,051 Posts
Also in the corner of the emissions label it will say "AIR" if it has it.
(sometimes referred to as SAI)


·
Administrator
2002.5 F55 CORSA STS, 2014 Explorer XLT FWD
Joined
·
71,694 Posts
:confused: I believe I have discovered the fly in the ointment: My late '02 STS has only 1 gray relay on the strut tower but 2 A.I.R. valves, vacuum controlled, connected by a hard plastic T vacuum line under the engine cover. Both valves discharge into what looks like a flex s/s or aluminum line gasketed to the exhaust manifold area. The rear valve intake is through a metal line which runs down behind the engine, while the front intakes through a rubber line which runs down under the air filter box.

Must have been a late change....STS2003, what about your '03?


·
Registered
The Northstar Tuner
Joined
·
2,759 Posts
Discussion Starter #6
This is a TSB kit. Part# 19515548--Pump AIR and Hose Asm - Secondary AIR Pump (Inlet) (DeVille and SLS or STS)

Left side AIR pump


The very uncommon Right side AIR pump


·
Registered
The Northstar Tuner
Joined
·
2,759 Posts
Discussion Starter #7
The Original pump and hose


The new kit Part# 19515548
GM PART # 19515548
CATEGORY: Air Injector Reactor Pump
PACK QTY: 1
CORE CHARGE: $0.00
GM LIST: $218.11
OUR PRICE: $113.42

New location for the AIR inlet hose.




Condition
Some customers may comment on the "Service Engine Soon" (U.S.) or "Check Engine Soon" (Canada) malfunction indicator lamp (MIL) being illuminated.

Technicians may find these additional conditions:

• DTC P0410 set.

• Evidence of water in the Secondary Air Injection Reaction (AIR) Pump.

• Secondary AIR Pump shorted out/inoperative.

Cause
This condition may be due to water being ingested at the secondary air injection reaction (AIR) pump inlet hose, causing the pump to short out or seize up.


·
Registered
The Northstar Tuner
Joined
·
2,759 Posts
Discussion Starter #8
enhanced picture of the jumper harness


·
Cadillac Technician
none
Joined
·
11,051 Posts
AJ, I am really confused.
Is all your posting related to something? What is this jumper thing you are talking about? I don't see anywhere here where you explained what you are going on and on about.
Maybe you could clarify for us up here in the cheap seats?
Thanks.


·
Registered
The Northstar Tuner
Joined
·
2,759 Posts
Discussion Starter #10
AJ, I am really confused.
Is all your posting related to something? What is this jumper thing you are talking about? I don't see anywhere here where you explained what you are going on and on about.
Maybe you could clarify for us up here in the cheap seats?
Thanks.
When I build a program I need to know if the customer has A.I.R./S.A.I.
I have a Single pump and a No pump program completed. I was looking at options for the twin pump system. I thought it out and decided to run the single pump program. I did not check to see if both drivers will turn on together yet, but I have shipped out a jumper harness with the PCM for the twin pump cars.

It looks like I will have some time before I need to post the pictures that will complete this thread.

MM STS had a near death accident in a work vehicle. :helpless:

I received a hard to read Email from him. I think he was Drugged up. He post here on the forum since and I understand now.
He got hurt and the other guy is still in ICU. The leaves the PCM on hold.:cool2:

I have my camera at work and I need to take some pictures, but I have been busy. I did another program and shift kit yesterday afternoon.


·
Cadillac Technician
none
Joined
·
11,051 Posts
I see.
Thanks for the clarification. I thought I was just going crazy.
Oh wait... I am .... nevermind :histeric:


·
Registered
The Northstar Tuner
Joined
·
2,759 Posts
Discussion Starter #13

·
Registered
2001 Deville (pearl white)
Joined
·
4 Posts
Hey man,
Just looked at ur pics of the different AIR pump systems.....had question about bad pumps.
On a cold start I hear loud whining noise (2001 deville) for 15-20 seconds and thought it was
from the waterpump drive pulley area or BELOW.....someone mentioned in blog that it could be
AIR pump going bad. After car warms slightly it settles down and noise is gone. Any info would
greatly help.....thanks!


·
Registered
03 Deville
Joined
·
222 Posts
Hey one question might be dum but is the air pump located up top or on the bottom on the left driver side. And where is the relay I want to replace my pump& relay on my 03 devil thanks


·
Administrator
2002.5 F55 CORSA STS, 2014 Explorer XLT FWD
Joined
·
71,694 Posts
Ahhhh,,,,,,,,yup. Deleted.


·
Super Moderator
2010 DTS
Joined
·
87,735 Posts
Hey one question might be dum but is the air pump located up top or on the bottom on the left driver side. And where is the relay I want to replace my pump& relay on my 03 devil thanks
It's on the bottom. Remove the lower splash shield and the forward wheel house splash shield. You'll see it mounted to the cradle forward and inboard of the wheel.

I think Sub is confusing the AIR pump with the ELC compressor.
